Unit Sink

Unit Sink

¥37,400
Taxes included. Shipping calculated at checkout.

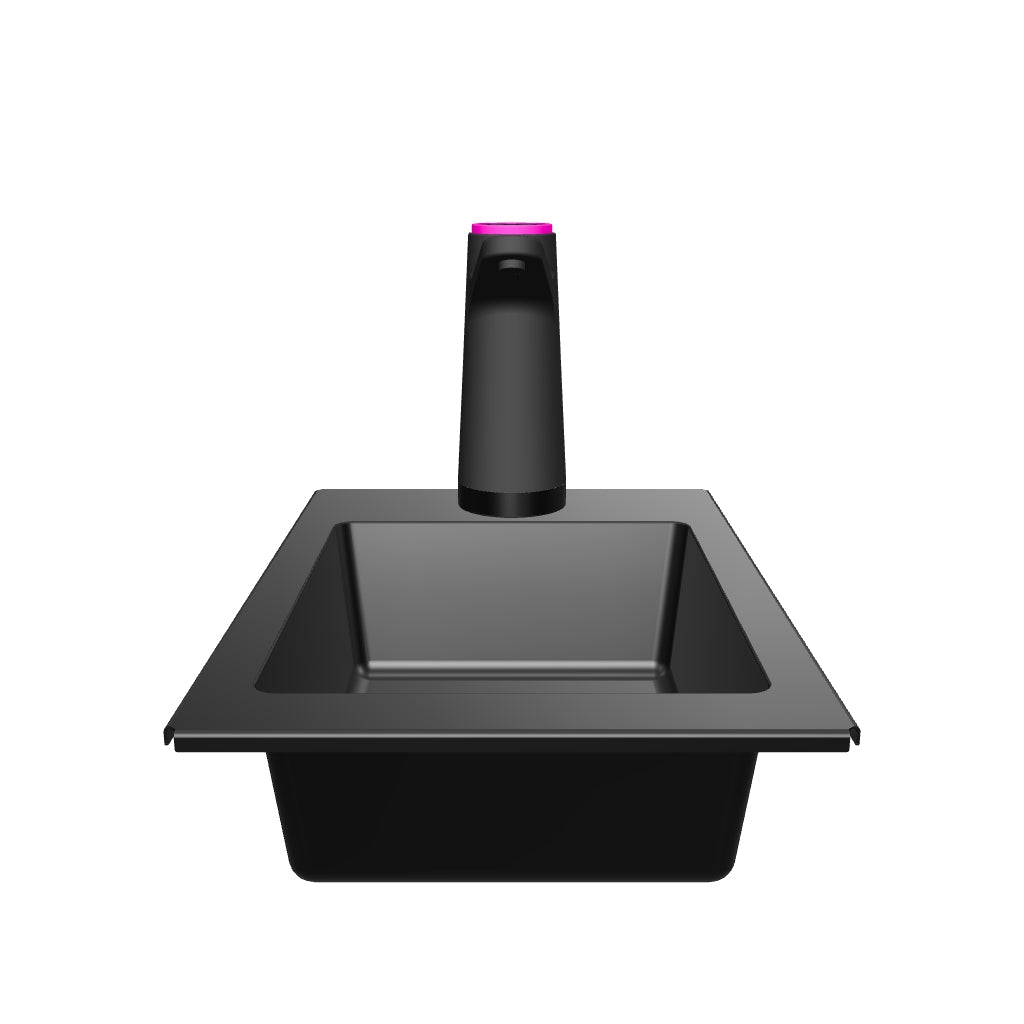

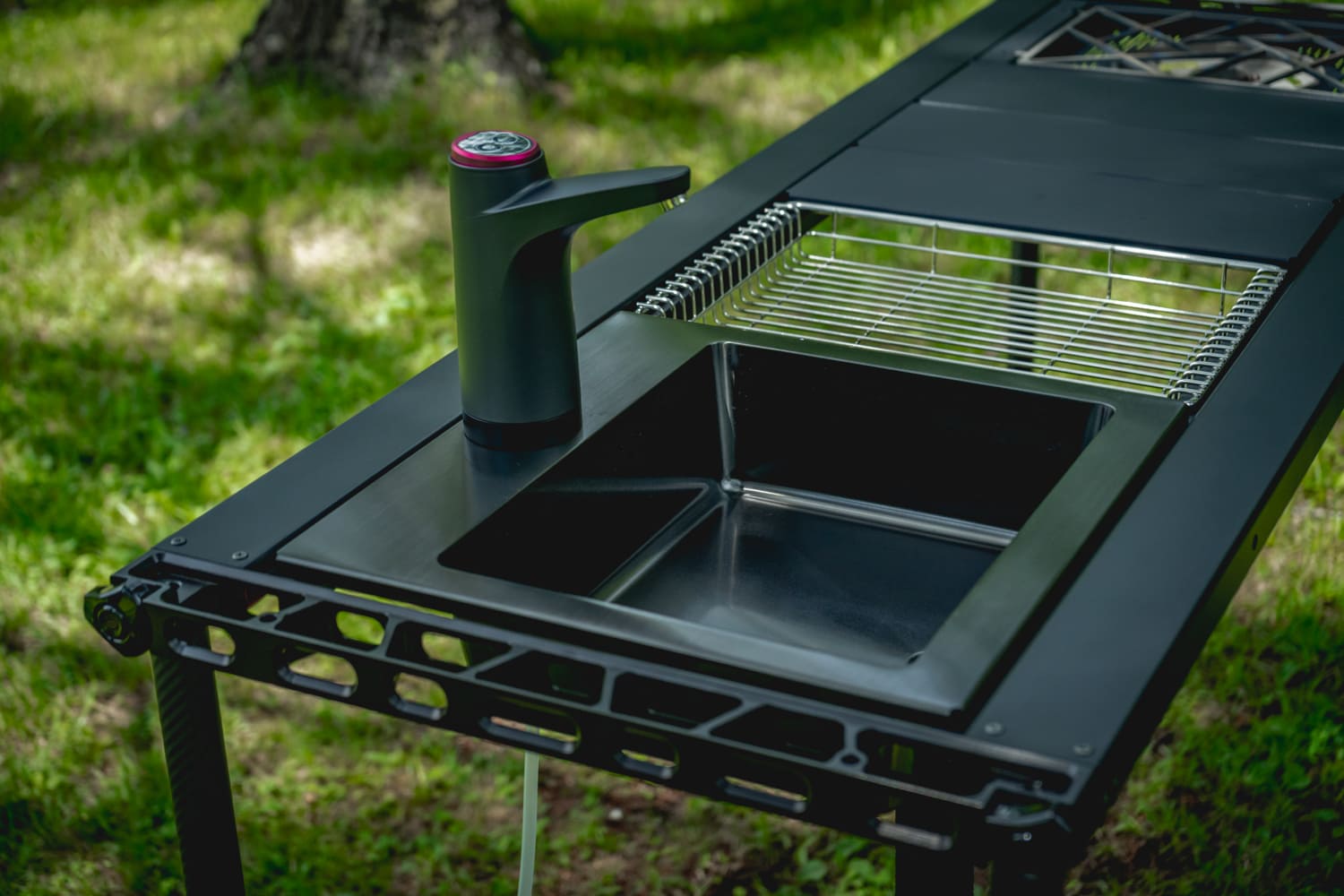

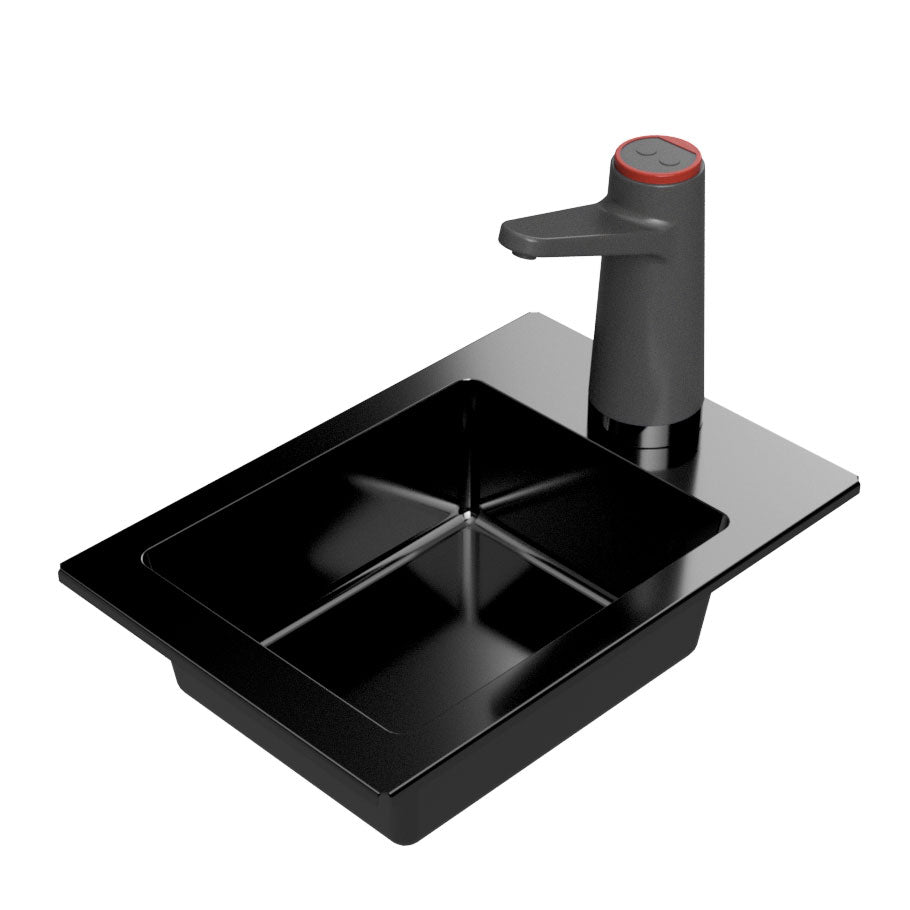

This is a sink set that can be attached to an IGT standard table. It includes the sink body, dedicated case, pump, pump base, water supply tube, and USB cable for charging.

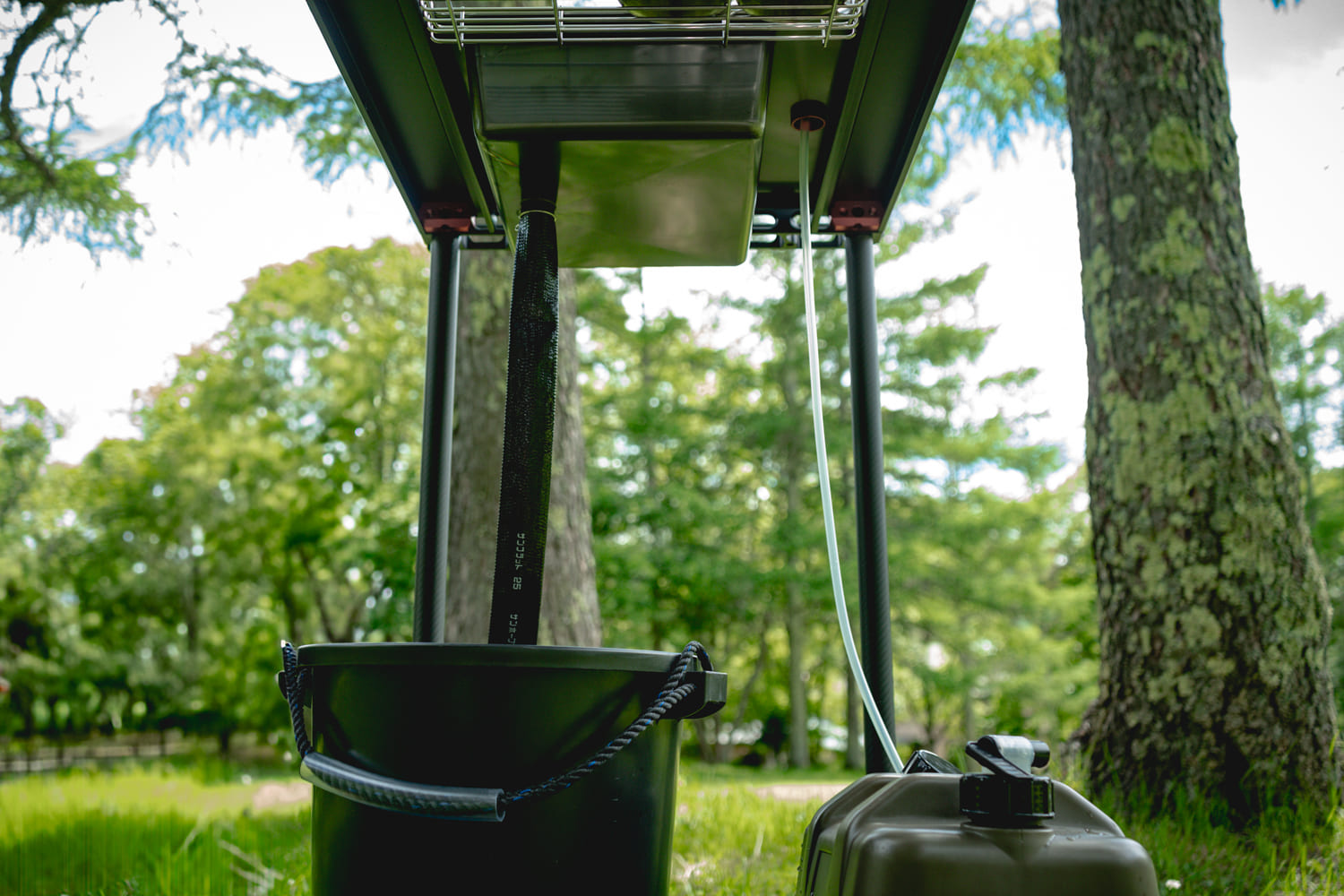

You can also use it with tables other than ours (frame tables). You will need to provide a water supply tank and a drainage tank.

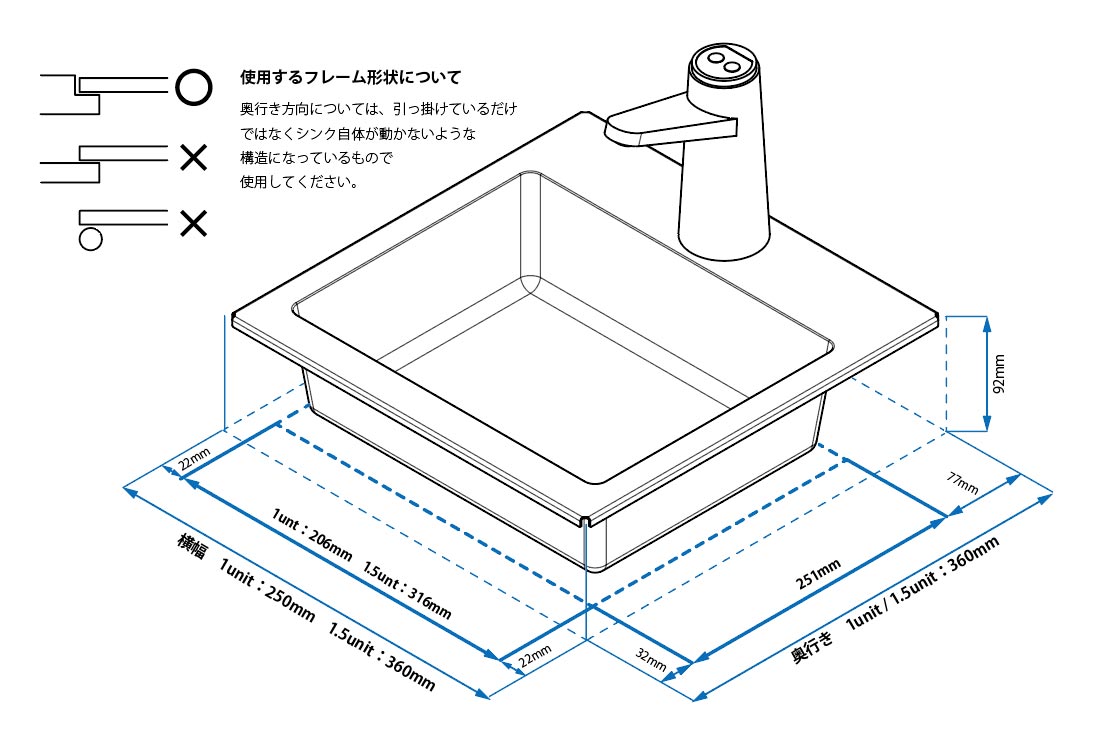

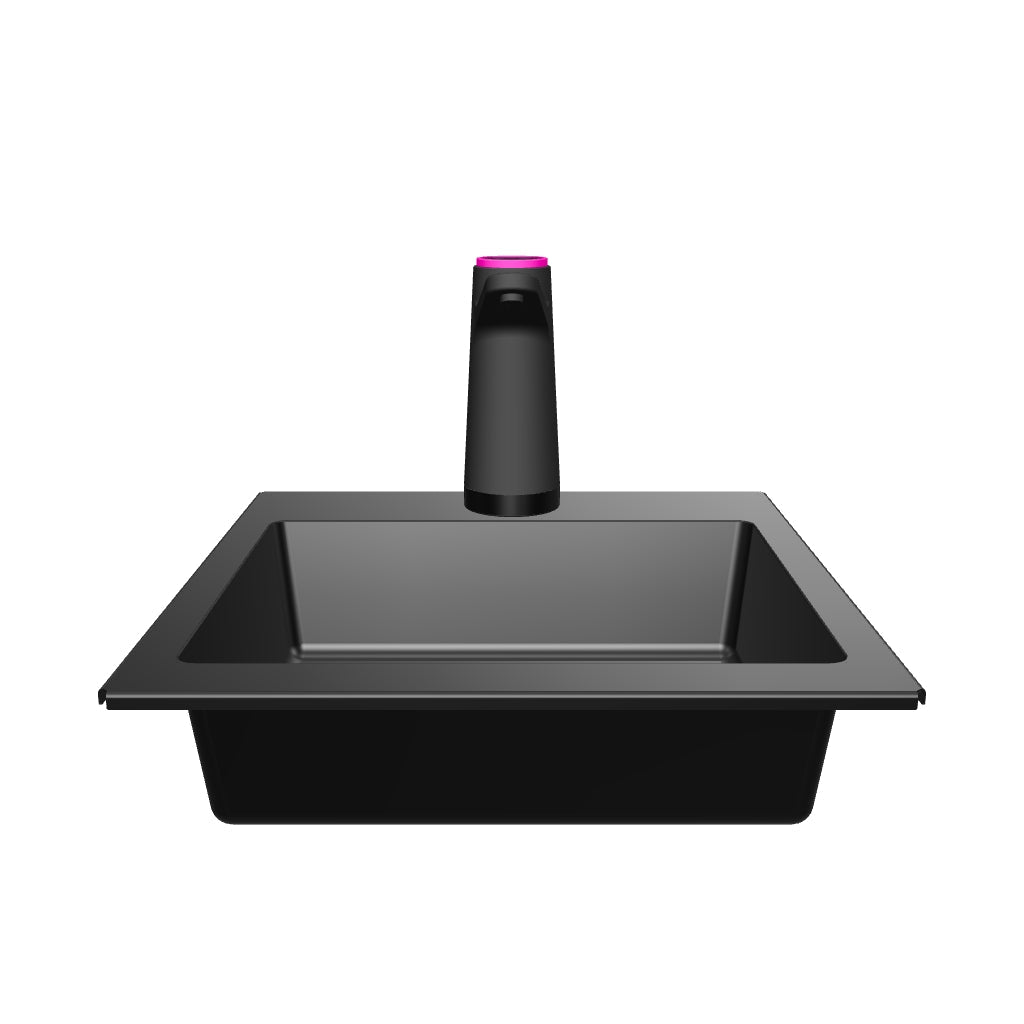

There are two types, 1 unit and 1.5 unit. The 1.5 unit type is square, so it can be used either vertically or horizontally, expanding the range of arrangements.

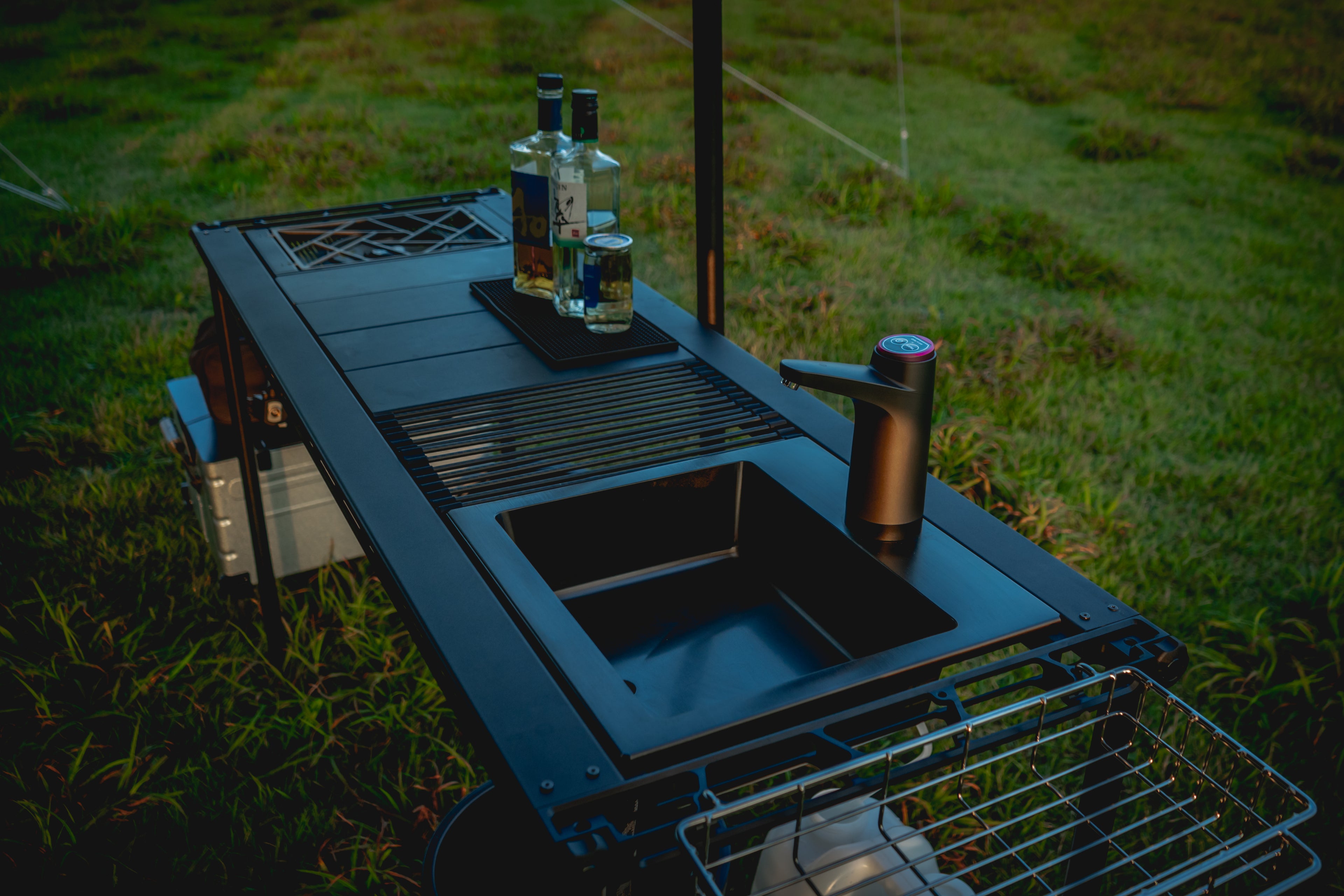

Long hose set (optional)This is a high table specification with a 1.5 unit attached (photo shows 1.5 units).

The standard accessories are for a low table (approximately 40 cm high). If you use it on a high table, you will need to lengthen the hoses.Optional hosePlease use it.

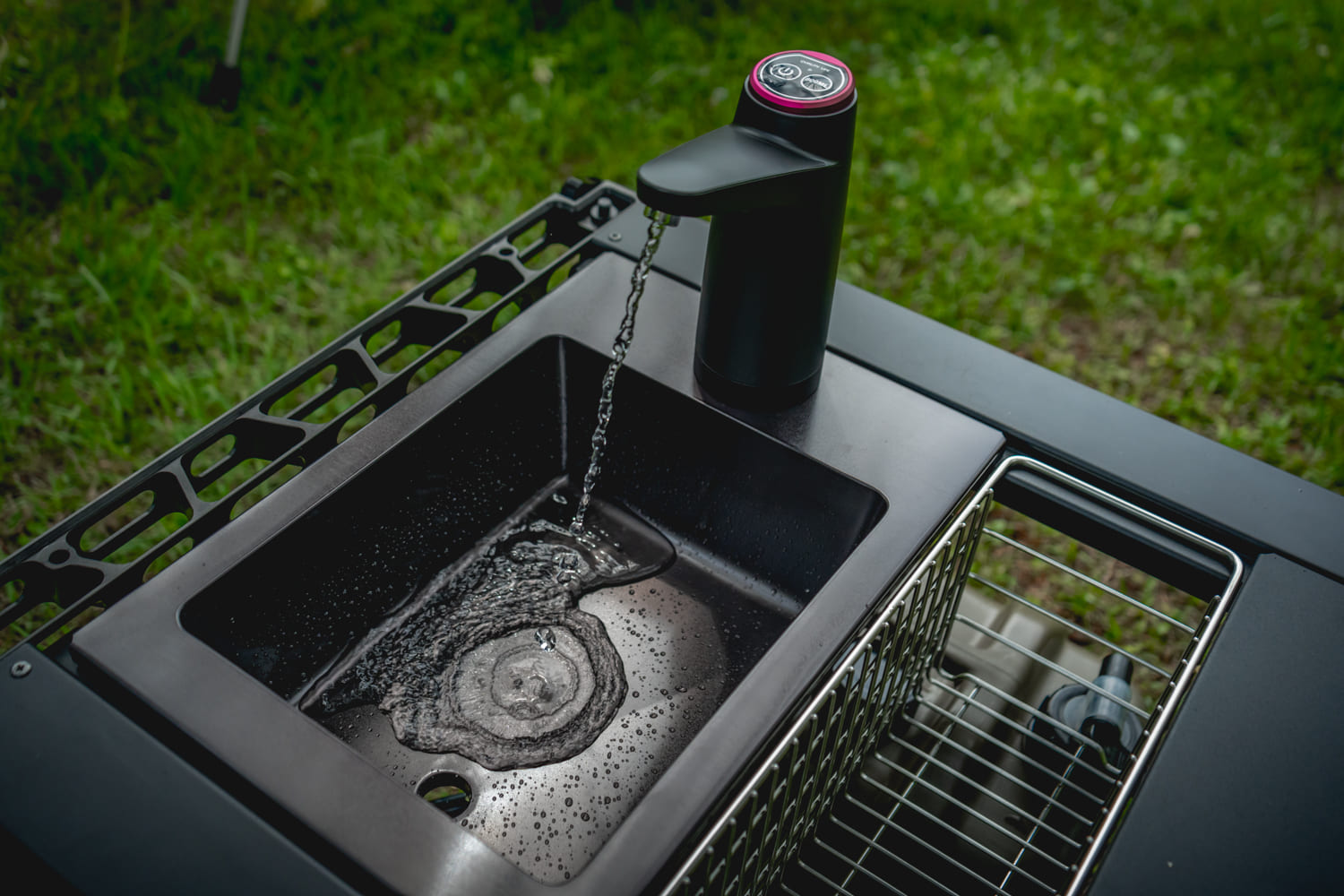

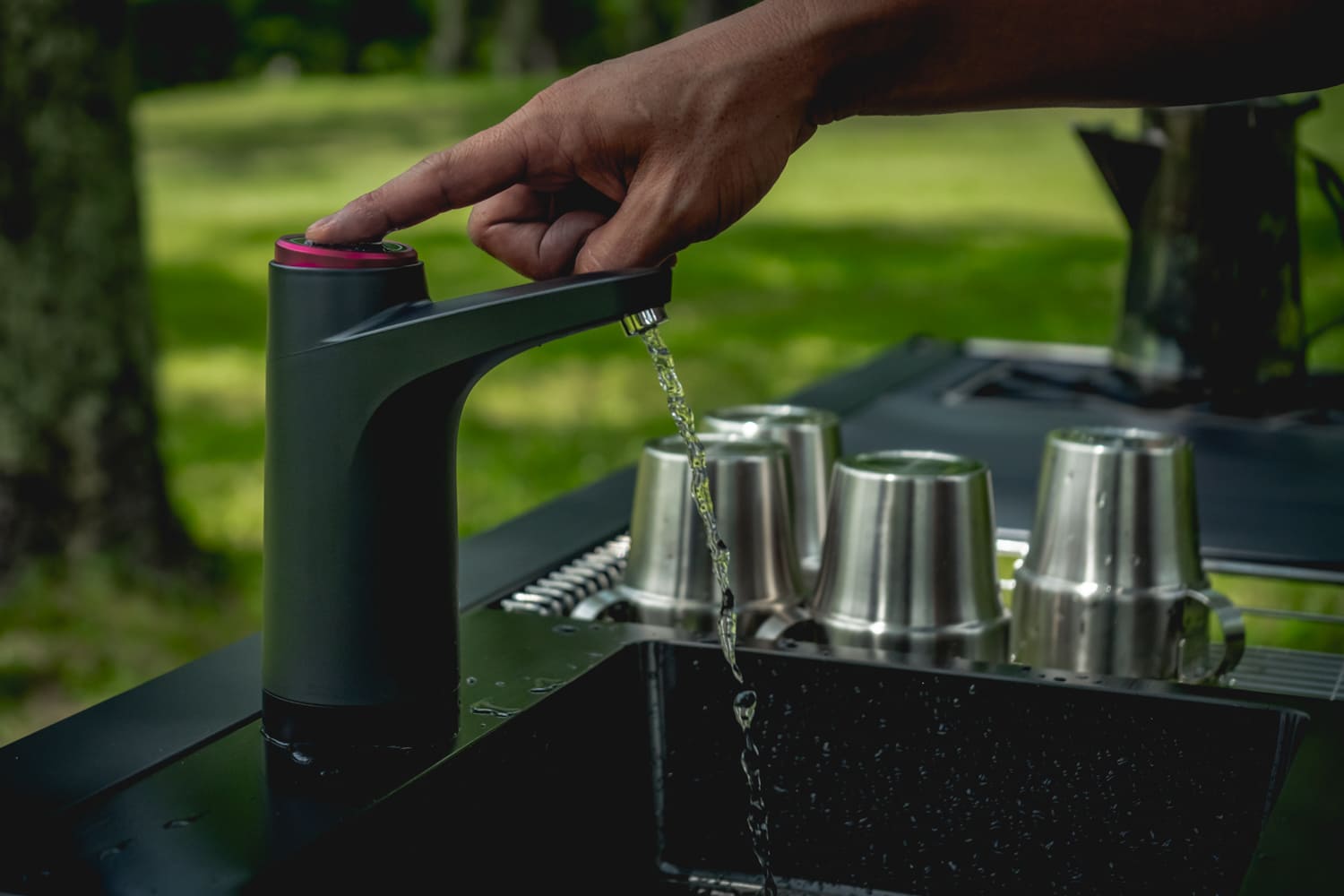

The pump part has a built-in battery and can be charged via USB. A full charge can dispense 40-50L of water. (Continuous operation will automatically stop after 90 seconds) The pump itself is a general-purpose product and uses a water dispenser pump for gallon bottles.

Specification
● Details

Contents

Sink body: Sink body (SUS304) PVD coated Dedicated case: Made of nylon
Pump: Rechargeable pump 4w Battery 1200mAh
Pump base: Machined A6061 aluminum. The base is black anodized, and the bolts are red anodized.
Water supply tube: Silicone 50cm
Charging USB cable: Micro USB Type-B

weight

Sink 1 unit / 1.5kg
Sink 1.5 units / 2kg
Pump / 210g
● Notes

After use, remove the water supply hose from the water tank, then run the pump to drain the water from inside the pump.

The inside of the sink is PVD coated, do not clean it with abrasive cleaners, use a soft sponge or cloth.

When storing in the case, be sure to attach a protective cap to the drain hole. (Doing so will damage the case.)

The pump body is not waterproof.

Do not use hot or warm water to supply water. Water at body temperature (around 40 degrees) can be used.

Depending on how it is installed on the table, it may wobble or the water in the sink may become uneven.

This product has many welded parts, so it may be slightly warped, but this will not affect its use.

If the water supply hose is too long and bends, cut it off. If it is bent, water will not be supplied properly.

Initial failure and malfunction of the pumpPlease contact us here.
The warranty period is 6 months from the date of purchase.
● Sales start date

Sales start in July 2024
